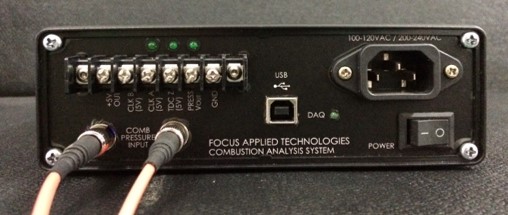

This combustion analysis system consists of an in-cylinder pressure transducer and amplifier, crank angle encoder with TDC trigger and data acquisition unit (DAQ) to capture the combus-tion pressure.
The pressure transducer is an optical type sensor (at right) measuring diaphragm deflection to calculate cylinder pressure. This type of sensor gives very stable and consistent signal, unlike the piezo-electric sensor which will drift over time.
The DAQ is clocked by the encoder crank angle signal, where each pressure data point corresponds to a particular crank angle. This allows much easier data processing than the time based DAQ.

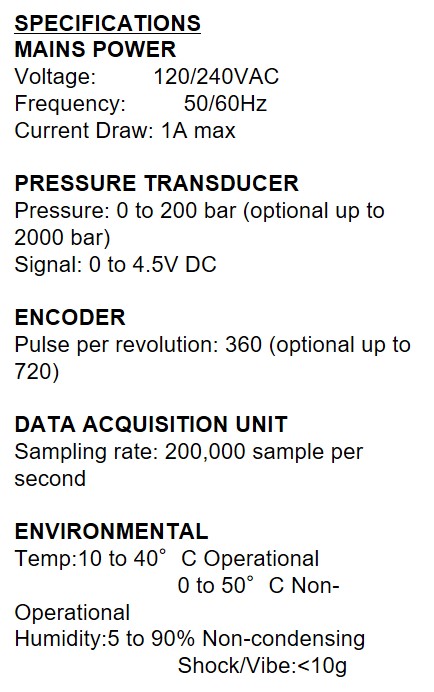

- Optics diaphragm deflection detection give stable and consistent pressure signal
- Crank angle based data acquisition greatly simplified combustion data processing (only 360 data points for each engine revolution, using 1 degree clock signal)
- Small M5 Sensor
- Free computer software for graphic display
- 1 year warranty
- 10kW Bench Dynamometer
- Digital Fuel Scale
- Internal Combustion Engine (Diesel/Gasoline)
- Electronic Controlled Fuel Injection System
- Extensive Seminars on Combustion Analysis are also available
