Home / Dynamometers / MCD100 Motorcycle Chassis Dyno

Motorcycle Chassis Dynamometer

Model: MCD100 / MCD100-i (Inertia)
Product Profile Hire Purchase Form

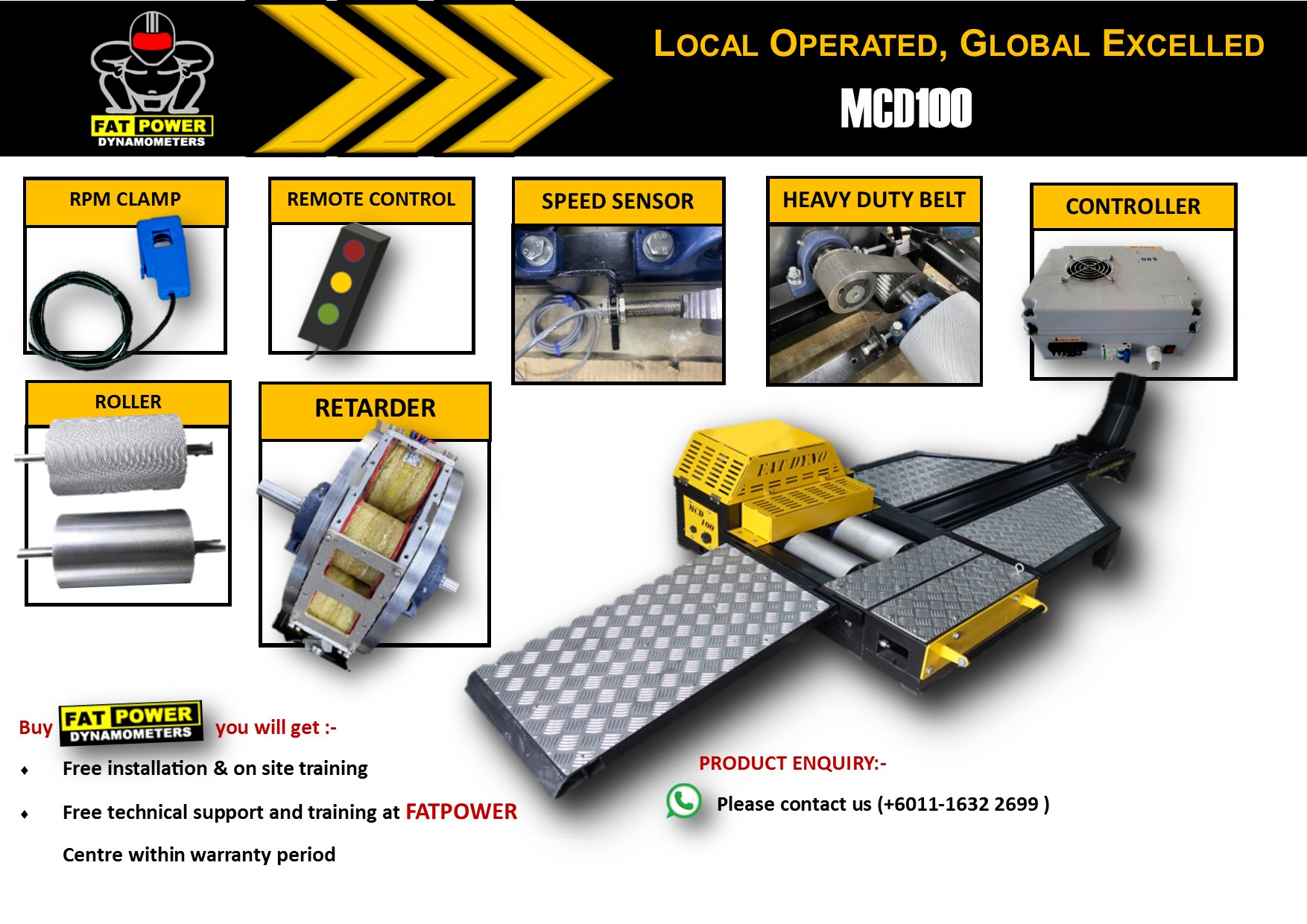

MCD100 Motorcycle Dynamometer Flyer
Power Capacity
100 kW (135 HP)
Engine Size
50 to 1000 cc
Max Speed
200+ KPH
Design Gred
Mobile & Modular
Hire Purchase Financing Available!
We offer flexible Hire Purchase installment options for Malaysian workshops & educational institutions.
Download Hire Purchase Form

Compact, Modular Motorcycle Dyno Solution

The MCD100 Motorcycle Dynamometer is a modular test rig designed to be disassembled and rolled away by a single technician on integrated casters. Despite its compact footprint, it handles up to 300Nm torque and 10,000 RPM retarder capacity.

The tandem roller configuration ensures effortless motorcycle mounting with screw-adjustable or pneumatic front-wheel clamping. Compatible with our R&D Gen-5 controller or cost-effective embedded controllers for tuning workshops.

Key Technical Features

100 kW Absorber (Upgradable from Inertia version)
Suitable for 50cc up to 1000cc Motorcycles
Wheel Speeds over 200 km/h
Portable Frame Easily Transported in a Van or Ute
Gen-5 or Embedded Workshop Controller
Integrated Multi-Channel Data Logging
In-Floor Pit Mount or Above-Ground Ramp Options
Free Computer Graphical Display Software

MCD100 Technical Specifications Sheet

MCD100 Specifications Chart
Parameter Specification Value
Absorber Power Rating 100 kW (135 HP) Continuous Absorption
Engine Range 50 cc to 1000 cc Motorcycles & Scooters
Max Wheel Speed 200+ km/h
Roller Config 6-inch Tandem Knurled Steel Rollers
Torque Capacity 300 Nm Retarder Brake Torque
Warranty 1-Year Standard Factory Warranty

Available Accessories & Upgrades

  • High-Volume Low-Noise Engine Blower & Stand
    Provides targeted engine & radiator airflow during extended dyno runs.
  • Wideband O2 Sensor (AFR) Controller
    Logs exact air-fuel ratio for carburetor tuning & EFI mapping.
  • Digital Fuel Scale (DFS)
    Mass balance fuel consumption logging for academic lab experiments.

1-Year Limited Manufacturer Warranty

Focus Applied Technologies warrants against manufacturer's defects for all equipment. Warranty commences from the date of delivery.

Warranty Coverage Conditions:

  • Covered for 1 year from delivery date under standard workshop operation.
  • Focus will repair or replace defective components as required.
  • Separately warrantied sub-systems carry original manufacturer warranty.
